AL-KO Type Brake Shoes Set (CLUBMAN) 1213888 (1637) 160 mm x 35 mm
Al-ko Type brake shoes for one axle. The kit replaces the brake shoes, springs and cover plates in two drums.
Brake shoes are for a 160 mm Diameter Drum with a 35 mm Width Brake Shoes
(CLUBMAN)
Al-ko brakes can be found on most makes of caravan and trailers manufactured from 1984.
Caravan makes such as Swift, Bailey, Lunar, Sterling, Swift, Coachman, Bessacarr, Compass and Elddis
As well as trailers such as Brian James, Ifor Williams, Snipe, West Mersea and Indespension have used Al-ko brakes.
Fitted to with either a single axle up to 1000kg or tandem axle up to 2000kg (two kits will be required to replace all four brakes).
Al-ko recommend that brakes shoes on the same axle are replaced at the same time to maintain even braking.

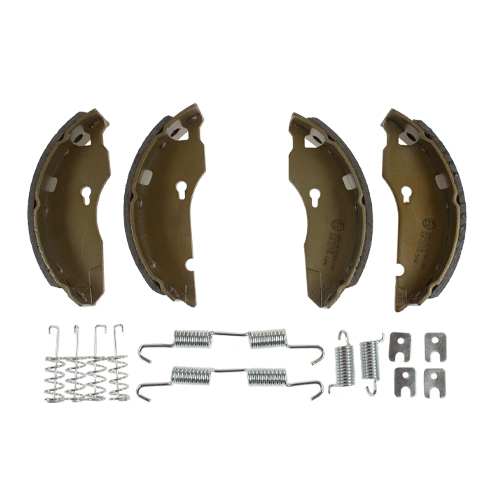

Included in the Kit:
Brakes Shoe x 4
Cover plate x 4
Shoe retaining spring x 4
Tension spring x 2
These brake shoes are suitable for Alko Axles with the following eti numbers (as stamped on the axle plate):
811001, 811061, 811134, 811156, 811159, 811214, 811229, 811267, 811285, 811301, 811305, 811306, 811307, 811327, 811407, 811422, 811523, 811526, 811553
Product Number 1766B
