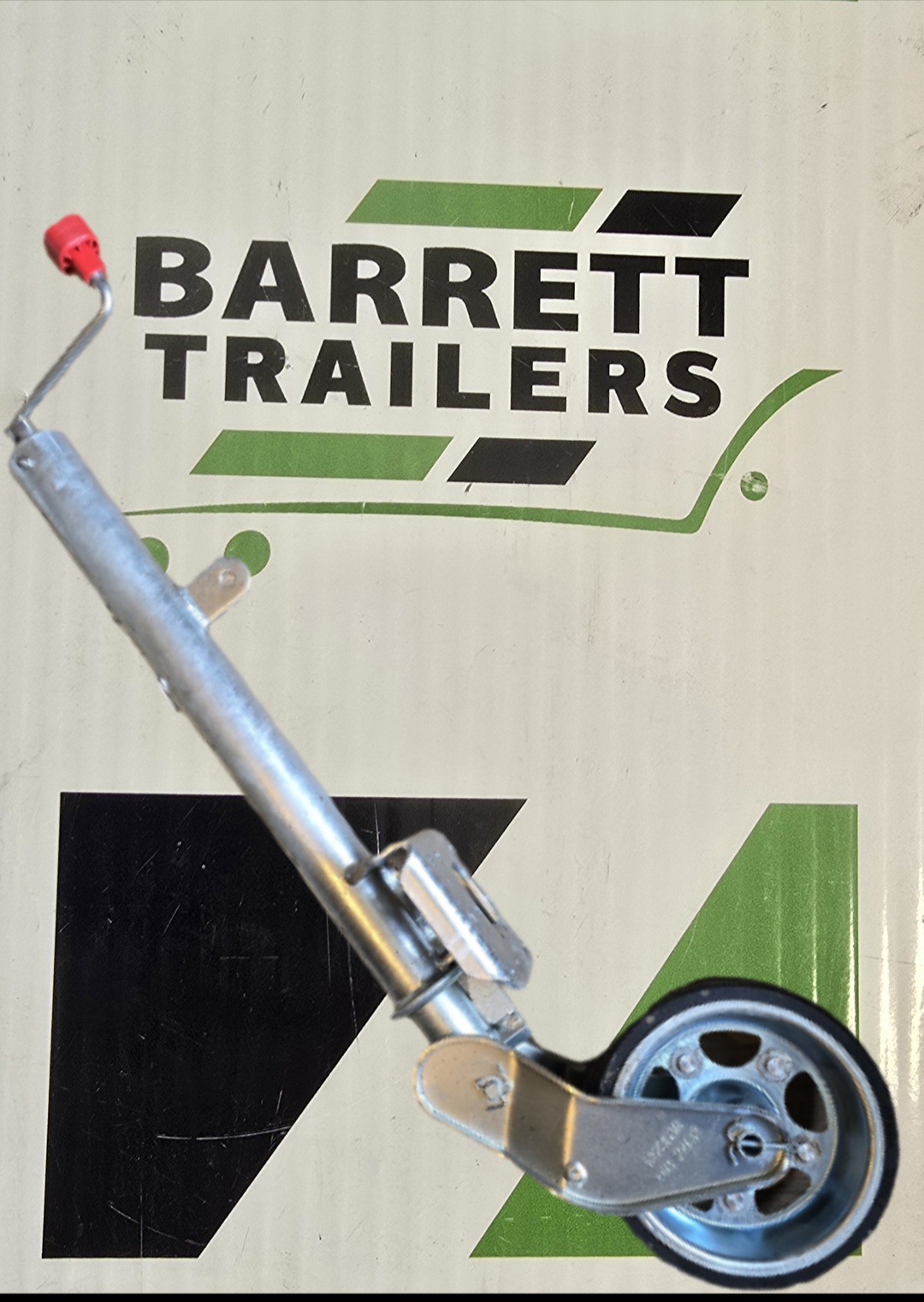

AL-KO 1223638 automatic jockey wheel 500kg 60mm
The AL-KO 1223638 jockey wheel is a reinforced jockey wheel designed for trailers requiring increased load capacity and durability. Featuring a 230 x 80 mm solid rubber wheel and a steel rim, it guarantees high wear resistance and comfortable maneuvering, even on uneven surfaces. With a load capacity of up to 500 kg in the parked position and 300 kg when maneuvering , this model is ideal for heavier transport and utility trailers.
The wheel is hot-dip galvanized, effectively protecting it from corrosion and harsh weather conditions. It features a crank with a thrust bearing , making operation smoother and less demanding. The wheel lifting mechanism is fully automatic , and the built-in grease nipple ensures freedom of movement and a longer service life. This model is a long version with an extended adjustment stroke , facilitating precise height adjustment. Additionally, the support wheel plate is deeply welded, increasing the support foot’s pivot space during lifting and ensuring greater comfort of use.
Jockey wheels play a key role in maintaining trailer stability when parked and facilitate maneuverability, especially on uneven terrain. They enable easy coupling and uncoupling of the trailer from the vehicle, increasing safety and comfort. Furthermore, thanks to their height adjustment, they allow for precise trailer positioning, which is particularly useful during loading and unloading.

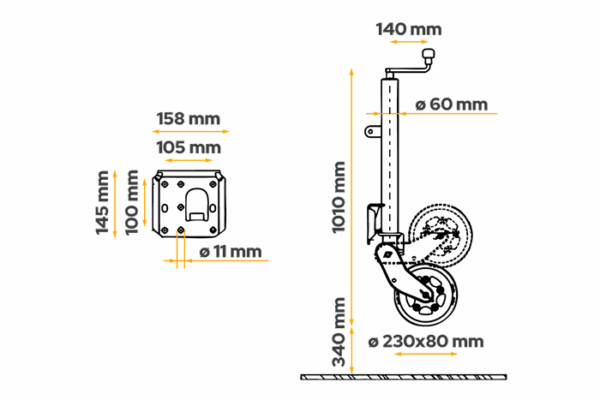

Specification:
- Vertical load when stationary: 500 kg
- Pipe diameter: 60 mm
- Wheel: 230×80 mm, solid rubber
- Unscrewing length: 340 mm
Product Number 1223638
